Ajmera Motors

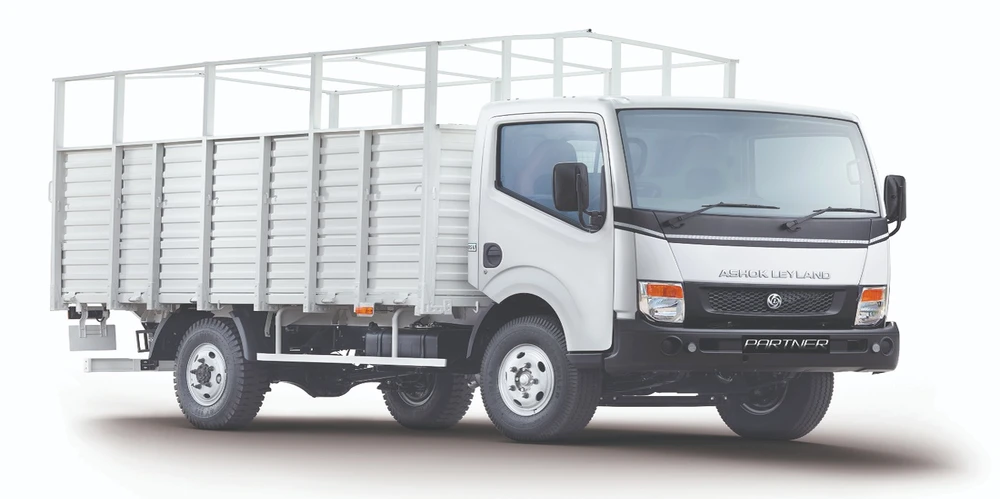

Partner 4-Tyre

Overview

Be it for intra-city goods transportation, or for making collections or deliveries across rural areas, the Partner is up for almost any job, on any terrain. With an understanding of the nuances of Indian roads,the transportations needs of the people and newly introduced emission standards, the Partner is built to be a reliable vehicle with potential only surpassed by its functionality with new i-Gen BS6 Technology.

A Modern Freight Carrier

The Partner offers performance and efficiency on par with global standards. With a modern Euro cab, spacious car-like interiors, and a gross vehicle weight (GVW) of 6.25 T,7.2 T and 7.49 T, the Partner addresses various applications like parcel goods, durables, perishables and FMCG products, among others.

Enhanced Driver Comfort and Safety

The next-generation Partner not just offers superior mileage and performance, but also enhanced driver safety and comfort. The ‘Euro’ cabin is modern and comfortable, with air-conditioning (HVAC) options. Comfortable and safe interior ergonomics include dual-tone dashboard, moulded roof and door trims, tilt-able power steering, adjustable driver seat, windshield defogger, fog lamp, a lockable glove compartment, and 3-point seat belt.

Features


Zyaada TECHNOLOGY

  • ADVANCED Selective Catalytic Reduction (SCR) Technology - Better Reduction of NOx, CO, HC & PM
  • GREENER AND CLEANER TECHNOLOGY

Zyaada POWER & Zyaada MILEAGE

  • Get MORE Mileage with Superior and Proven ZD30 Engine
  • Highly efficient Bosch 2.2 CRi Common Rail System with Advanced Direct Injection
  • BEST IN CLASS POWER AND TORQUE
  • POWER: 140 HP | TORQUE: 360 Nm
  • 10% MORE MILEAGE

Zyaada DURABLE AGGREGATES

  • Advanced Gear Box with Dual Synchro Cones
  • Bigger Clutch
  • First in Class Cable Shift Gear Mechanism
  • First in Class Parabolic Suspension
  • BEST ENSURING RELIABLE PERFORMANCE

Zyaada PAYLOAD & LOADING SPACE

  • Bigger load body in length and side deck height - More usable space
  • Lesser Loading Platform height for easy loading and unloading
  • UPTO PAYLOAD: 4885 kg

Zyaada COMFORT

  • Modern Euro Cabin design which meets International Standards
  • Narrow Cabin Width (1.9m) for better maneuverability
  • Front Tilt Cabin for ease of Serviceability
  • FACTORY-FITTED AC AND POWER STEERING

Zyaada BHAROSA

  • Engine & Transmission warranty of 3 years/ 3 Lakh km which ensures complete Peace of Mind
  • High Reliability and Proven Performance
  • 3 YEARS OR 3 LAKH km
Parnter 4 - Tyre
10 ft LB 14 ft LB
Weight (kg)
Gross Vehicle Weight (kg) 6250 7200
Rated Payload (FSD) (kg) 3760 4565
Load Body Dimensions (mm)
Length 3160 4230
Width (HSD) 1960 2060
Height FSD: 460 - HSD: 1840
Powertrain
Engine Type ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled)
Displacement 2953 cc
Max Power HP (@rpm) 140@2750
Max Torque Nm (@rpm) 360 Nm @ 1350-2750 rpm
Clutch 310 mm Diameter, Diaphragm, Push type, Single dry plate , Hydraulic actuated
Transmission Fully syncronised 5 speed gearbox Manual – Kinetic
Fuel Tank Capacity 90 Litres
Emission Standard BS VI
Suspension & Tyres
Front Suspension Parabolic, overslung suspension with Double acting Shock Absorbers
No. of Leaf Springs (Front) Front 3
Rear Suspension Semi elliptic (main), overslung suspension with Double acting Shock Absorbers
No. of Leaf Springs (Rear) 6 Main + 2 Helper
No. of Tyres Front 2, Rear 2, Spare 1
Tyre Size 8.25 X 16, 16PR
Loading Pla¥orm Height (mm) 1050 1035
Turning Circle Radius (TCR) (m) 6.2 7.5
Min. Ground Clearance 238
Overall Dimensions (mm)
Wheel Base 2685 3335
Overall Length 4920 5990
Overall Height FSD : 2250
HSD : 2850
FSD : 2250
HSD : 2810
Electricals
Battery 1 x 75 AH
Alternator 70A
Steering
Steering System Power
Brakes
Service Brake Vacuum-assisted Hydraulic Brake
Exhaust Brakes No Yes
Parking Brake Transmission mounted, Cable Operated
Performance
Gradeability 25%



Features Partner 4 - Tyre
LS
Comfort & Convenience Tiltable Power Steering
Reclining & Sliding Driver Seats
Digital Clock (on instrument cluster)
Mobile Charging Point (12V)
Lockable Glove Box
Bottle Holder
Lockable Battery Box
AC with Heater Unit (HVAC)
Windshield Defogger
Interiors Dual Tone Dash Board
Seat Material - Dual Tone Vinyl
Moulded Roof & Door Trims
Safety ELR Seat Belt (Driver and Co-Driver)
Fog Lamp Provision
Vacuum-assisted Brakes with LCRV
Technology Tiltable Cabin
Cable Type Gear Shift
Low Vacuum in Brake Booster Indicator
Speed Limiting on ECU
Provision for Power Take-off(Mechanical)
