Overview

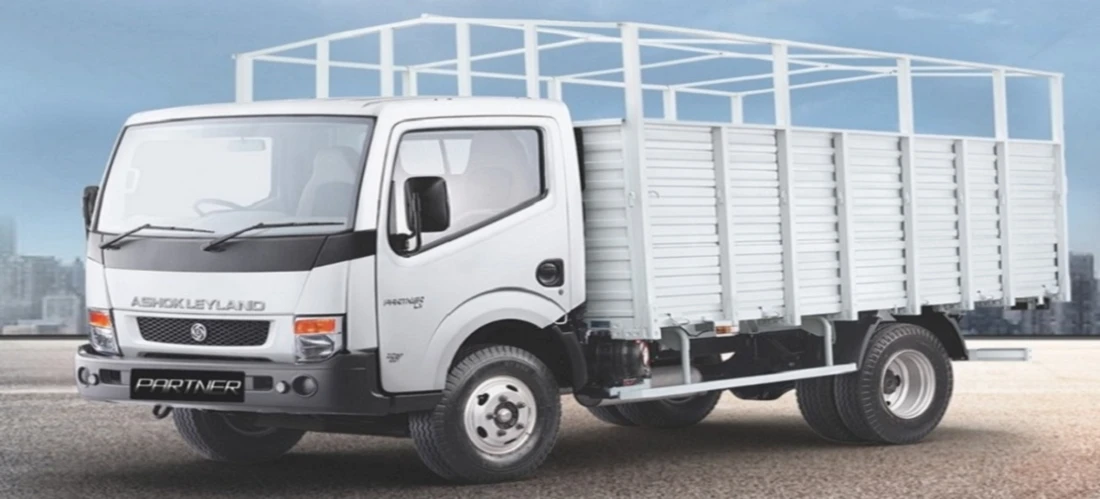

Ashok Leyland‘s ‘Partner’ series is available in both 4 tyre and 6 Tyre with a modern cabin, impressive built quality, fuel-efficient engine and with best in class service intervals with warranty of 3 Years or 3 Lakh Km,the vehicle delivers best-in-class user experience, coupled with exceptional efficiency.
A Modern Freight Carrier
The tilt-able cabin, low loading platform height and runner mounted load body enables service accessibility, customization and a wide choice of load body options. The turning radius and heavy-duty axles in the Partner are augmented for handling tough conditions.
Enhanced Driver Comfort and Safety
The Partner features a braking system, along with vacuum assist and Load Conscious Regulating Valve (LCRV) for greater safety. The parabolic front suspension and semi-elliptical rear suspension, along with double acting shock absorbers on both the axles, make the ride comfortable for the driver, irrespective of the payload or terrains.
Features
Zyaada TECHNOLOGY
- ADVANCED Selective Catalytic Reduction (SCR) Technology - Better Reduction of NOx, CO, HC & PM
- GREENER AND CLEANER TECHNOLOGY
Zyaada POWER & Zyaada MILEAGE
- Get MORE Mileage with Superior and Proven ZD30 Engine
- Highly efficient Bosch 2.2 CRi Common Rail System with Advanced Direct Injection
- BEST IN CLASS POWER AND TORQUE
- POWER: 140 HP | TORQUE: 360 Nm
- 10% MORE MILEAGE
Zyaada DURABLE AGGREGATES
- Advanced Gear Box with Dual Synchro Cones
- Bigger Clutch
- First in Class Cable Shift Gear Mechanism
- First in Class Parabolic Suspension
- RELIABLE PERFORMANCE ALWAYS!
Zyaada PAYLOAD & LOADING SPACE
- Bigger load body in length and side deck height - More usable space
- Lesser Loading Platform height for easy loading and unloading
- PAYLOAD: UPTO 4579 kg (CBC)
Zyaada COMFORT
- Modern Euro Cabin design which meets International Standards
- Narrow Cabin Width (1.9m) for better maneuverability
- Front Tilt Cabin for ease of Serviceability
- FACTORY-FITTED AC AND POWER STEERING
Zyaada BHAROSA
- Engine & Transmission warranty of 3 years/ 3 Lakh km which ensures complete Peace of Mind
- Lower Maintenance cost due to higher change intervals
- Comes with Air Brakes
- 3 YEARS OR 3 LAKH km
| Parnter 17-Feet 6-Tyre Airbrake | ||||||||
| 17 ft LB | ||||||||
| Weight (kg) | ||||||||
| Gross Vehicle Weight (kg) | 6250 | |||||||
| Rated Payload (CBC) (kg) | 4579 | |||||||
| Load Body Dimensions (mm) | ||||||||
| Length | 5275 | |||||||
| Width (HSD) | 2209 | |||||||
| Height | 1830 | |||||||
| Powertrain | ||||||||
| Engine Type | ZD30 Diesel Engine with DDTi (Double Overhead Camshaft, Common Rail, Direct Injection, Turbo Intercooled) | |||||||
| Displacement | 2953 cc | |||||||
| Max Power HP (@rpm) | 140@2750 RPM (BS6) | |||||||
| Max Torque Nm (@rpm) | 360 Nm @ 1350-2750 RPM (BS6) | |||||||
| Clutch | 310 mm Diameter, Diaphragm, Push type, Single dry plate , Hydraulic acturated | |||||||
| Transmission | Fully syncronised 5 speed Manual Gearbox | |||||||
| Fuel Tank Capacity | 90 Litres | |||||||
| Emission Standard | BS VI | |||||||
| Suspension & Tyres | ||||||||
| Front Suspension | Parabolic, overslung suspension with Double acting Shock Absorbers | |||||||
| No. of Leaf Springs (Front) | Front 5 | |||||||
| Rear Suspension | Semi elliptic (main), overslung suspension with Double acting Shock Absorbers | |||||||
| No. of Leaf Springs (Rear) | 9 Main + 5 Helper | |||||||
| No. of Tyres | Front 2, Rear 4, Spare 1 | |||||||
| Tyre Size | 7.50 X 16, 16PR | |||||||
| Loading Platform Height (mm) | 1090 | |||||||
| Turning Circle Radius (TCR) (m) | 6.8 | |||||||
| Overall Dimensions (mm) | ||||||||
| Wheel Base | 3955 | |||||||
| Overall Length (HSD) | 7085 | |||||||
| Overall Height (HSD) | 2870 | |||||||
| Electricals | ||||||||
| Battery | 1 x 75 AH | |||||||
| Alternator | 70A (LS)/ 90A (LX) | |||||||
| Steering | ||||||||
| Steering System | Power | |||||||
| Brakes | ||||||||
| Service Brake | Air Brakes | |||||||
| Parking Brake | Parking Brake integrated with rear brakes | |||||||
| Performance | ||||||||
| Gradeability | ~32% | |||||||
| Features | Partner 17-Feet 6-Tyre Airbrake | ||||
|---|---|---|---|---|---|
| LS | LX | ||||
| Comfort & Convenience | Tiltable Power Steering | ||||
| Reclining & Sliding Driver Seats | |||||
| Digital Clock (on instrument cluster) | |||||
| Mobile Charging Point (12V) | |||||
| Lockable Glove Box | |||||
| Bottle Holder | |||||
| Lockable Battery Box | |||||
| AC with Heater Unit (HVAC) | |||||
| Windshield Defogger | |||||
| Interiors | Dual Tone Dash Board | ||||
| Seat Material - Dual Tone | Vinyl | Fabric | |||
| Moulded Roof & Door Trims | |||||
| Safety | ELR Seat Belt (Driver and Co-Driver) | ||||
| Fog Lamp Provision | |||||
| Pneumatic Brakes | |||||
| Technology | Tiltable Cabin | ||||
| Cable Type Gear Shift | |||||
| Low Vacuum in Brake Booster Indicator | Not Applicable | Not Applicable | |||
| Speed Limiting on ECU | |||||
| Provision for Power Take-off(Mechanical) | |||||
